Australian UHF CB 80 Channel Frequencies

The Australian Government recently approved the UHF CB 40 Channel allocation to be “Expanded” to 80 channels.

This was achieved without extra bandwith by interleaving the extra 40 (minus one Ch#80 ) at 12.5Kc spacing between the original 25 kc spaced channels.

The last channel #80 seems to be added on top of the original 40 Channel allocation  at 477.4125.

I have operated on UHF CB since day one, at first with a Phillips which I converted to 88 channnels within 3 days of release just to see if I could.

Goldie loved it as his own as he didnt think it was possible. Sayonara Ham Ticket. Anyway got Sawtron 880 UHF CB Mobile replacement from Greg at the Importers, Imark.

We were both from same country city and I had first chance at Sawtron 200 Base console that plugs into remote head attachment on Sawtron 880 Mobile body.

Has many advanced features of the time and I added a thumb switch controlled digital tone decoder to go with the sender for selcal each way to home from my Phillips 900 in my panel van at the time.

Only has 5 watts from the 880 body but the Audio from the base console electret top mounted microphone is crystal clear and booms out!

Even with only 213 coax and a 6db coaxial colinear mobile antenna most think I am running 25 watts. I wish! When I lived in Northcote on top of the hill with LDF450 and 12 db antenna it kicked ass into Tassie sometimes.

UHF CB RADIO & CPI CB RADIOS

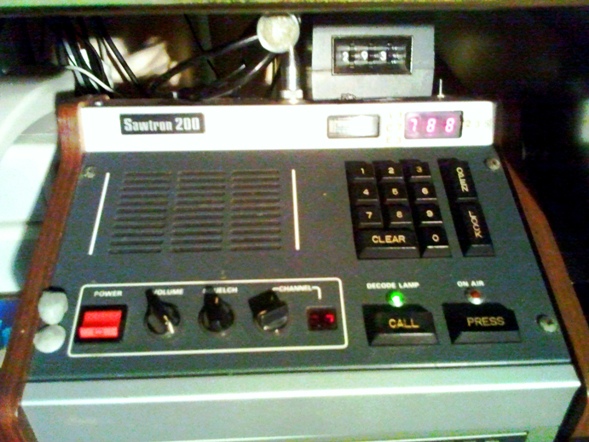

UHF CB Radio Sawtron 200 Base Station Console



 476.4250  Channel  1  Duplex – Repeater Output
 476.4375  Channel  41  Duplex – Repeater Output
 476.4500  Channel  2  Duplex – Repeater Output
 476.4625  Channel  42  Duplex – Repeater Output
 476.4750  Channel  3  Duplex – Repeater Output
 476.4875  Channel  43  Duplex – Repeater Output
 476.5000  Channel  4  Duplex – Repeater Output
 476.5125  Channel  44  Duplex – Repeater Output
 476.5250  Channel  5  Duplex – Repeater Output (Emergency only)
 476.5375  Channel  45  Duplex – Repeater Output
 476.5500  Channel  6  Duplex – Repeater Output
 476.5625  Channel  46  Duplex – Repeater Output
 476.5750  Channel  7  Duplex – Repeater Output
 476.5875  Channel  47  Duplex – Repeater Output
 476.6000  Channel  8  Duplex – Repeater Output
 476.6125  Channel  48  Duplex – Repeater Output
 476.6250  Channel  9  Simplex
 476.6375  Channel  49  Simplex
 476.6500  Channel  10  Simplex
 476.6625  Channel  50  Simplex
 476.6750  Channel  11  Simplex     Call Channel
 476.6875  Channel  51  Simplex
 476.7000  Channel  12  Simplex
 476.7125  Channel  52  Simplex
 476.7250  Channel  13  Simplex
 476.7375  Channel  53  Simplex
 476.7500  Channel  14  Simplex
 476.7625  Channel  54  Simplex
 476.7750  Channel  15  Simplex
 476.7875  Channel  55  Simplex
 476.8000  Channel  16  Simplex
 476.8125  Channel  56  Simplex
 476.8250  Channel  17  Simplex
 476.8375  Channel  57  Simplex
 476.8500  Channel  18  Simplex     Caravan & Campers Convoy Channel
 476.8625  Channel  58  Simplex
 476.8750  Channel  19  Simplex
 476.8875  Channel  59  Simplex
 476.9000  Channel  20  Simplex
 476.9125  Channel  60  Simplex
 476.9250  Channel  21  Simplex
476.9375  Channel  61  Reserved for Future Expansion
 476.9500  Channel  22  Data Only (No Voice – No Packet)
476.9625  Channel  62  Reserved for Future Expansion
 476.9750  Channel  23  Data Only (No Voice – No Packet)
476.9875  Channel  63  Reserved for Future Expansion
 477.0000  Channel  24  Simplex
 477.0125  Channel  64  Simplex
 477.0250  Channel  25  Simplex
 477.0375  Channel  65  Simplex
 477.0500  Channel  26  Simplex
 477.0625  Channel  66  Simplex
 477.0750  Channel  27  Simplex
 477.0875  Channel  67  Simplex
 477.1000  Channel  28  Simplex
 477.1125  Channel  68  Simplex
 477.1250  Channel  29  Simplex
 477.1375  Channel  69  Simplex
 477.1500  Channel  30  Simplex
 477.1625  Channel  70  Simplex
 477.1750  Channel  31  Repeater Input
 477.1875  Channel  71  Repeater Input
 477.2000  Channel  32  Repeater Input
 477.2125  Channel  72  Repeater Input
 477.2250  Channel  33  Repeater Input
 477.2375  Channel  73  Repeater Input
 477.2500  Channel  34  Repeater Input
 477.2625  Channel  74  Repeater Input
 477.2750  Channel  35  Repeater Input (Emergency Use Only)
 477.2875  Channel  75  Repeater Input
 477.3000  Channel  36  Repeater Input
 477.3125  Channel  76  Repeater Input
 477.3250  Channel  37  Repeater Input
 477.3375  Channel  77  Repeater Input
 477.3500  Channel  38  Repeater Input
 477.3625  Channel  78  Repeater Input
 477.3750  Channel  39  Simplex
 477.3875  Channel  79  Simplex
 477.4000  Channel  40  Simplex     Highway Channel
 477.4125  Channel  80  Simplex
