WINScanner software brings the excitement of radio transmitting and receiving to your computer!



The integration of a communications transceivers/scanners and a PC pioneered by WINScanner and it has brought about an increasing number of functions and features that have never been available on many radio transceivers or radio scanners before. The WINScannersoftware contains numerous advanced features, many tuning and scanning options and large memories capacity’s.

This new method of graphic tuning brings a totally new experience to tuning a radio. Imagine dragging your mouse across a scanned spectrum, click on a peak, and you are tuned to selected frequency.

WINScanner software is intended to used width HAM- / CB-Radio and radio-scanners. To use the Printer Port it is quit simple to make a software program to controlling the radio or the PLL`chip.



winscanner radio control

UPDATE 2012 JULY 15 – Gave the Tedelex TE7000 CB Base to my brother who is a full call VK3 Ham operator to use on 10Meters after converting the 02A PLL.
I was thinking of using ThumbWheels on the PLL but decided that way is a pain even if you do some code conversion to freq readout, so thought about using a computer to drive it.
I had interfaced a Commodore 64 to my CPI to use it as a scanning tranciever back in the 70’s so thought that may be the best way. Did a bit of Googling and found soomeone had re-invented my old wheel, and had free software as well using the parralel port on the PC.







Programming Chart for PLL02A

Band Ch. FIN P0 P1 P2 P3 P4 P5 P6 P7 P8
40 1 2.55MHz 1 1 1 1 1 1 X X X
40 2 2.54MHz 0 1 1 1 1 1 X X X
40 3 2.53MHz 1 0 1 1 1 1 X X X
40 4 2.51MHz 1 1 0 1 1 1 X X X
40 5 2.50MHz 0 1 0 1 1 1 X X X
40 40 2.11MHz 1 1 0 0 1 0 X X X
-80 X X X X X X X X 0 0 1
-40 X X X X X X X X 0 0 1
40 X X X X X X X X 1 1 0
80 X X X X X X X X 1 1 0
120 X X X X X X X X 1 1 0

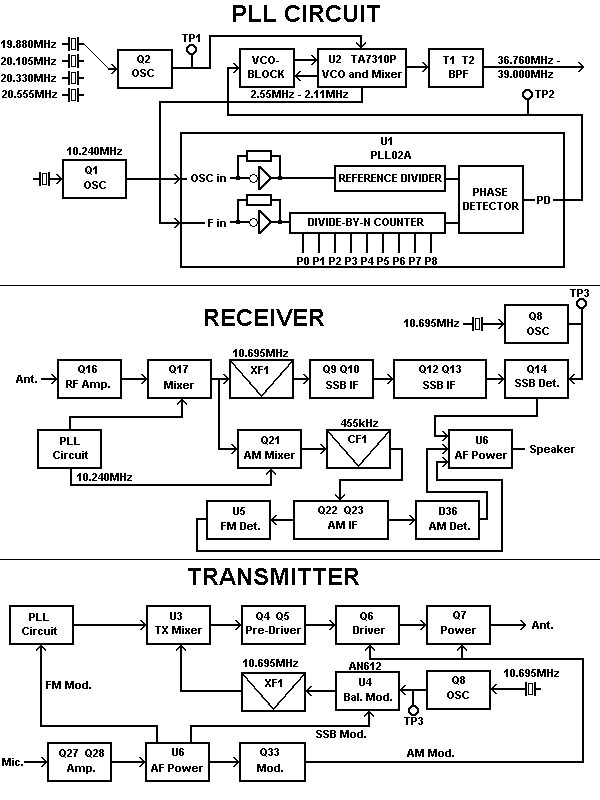

PLL 02A Diagram
